ViaStitching

A pure python via stitching.

After select "Via Stitching" in Tools menu, choose your options in the interface.

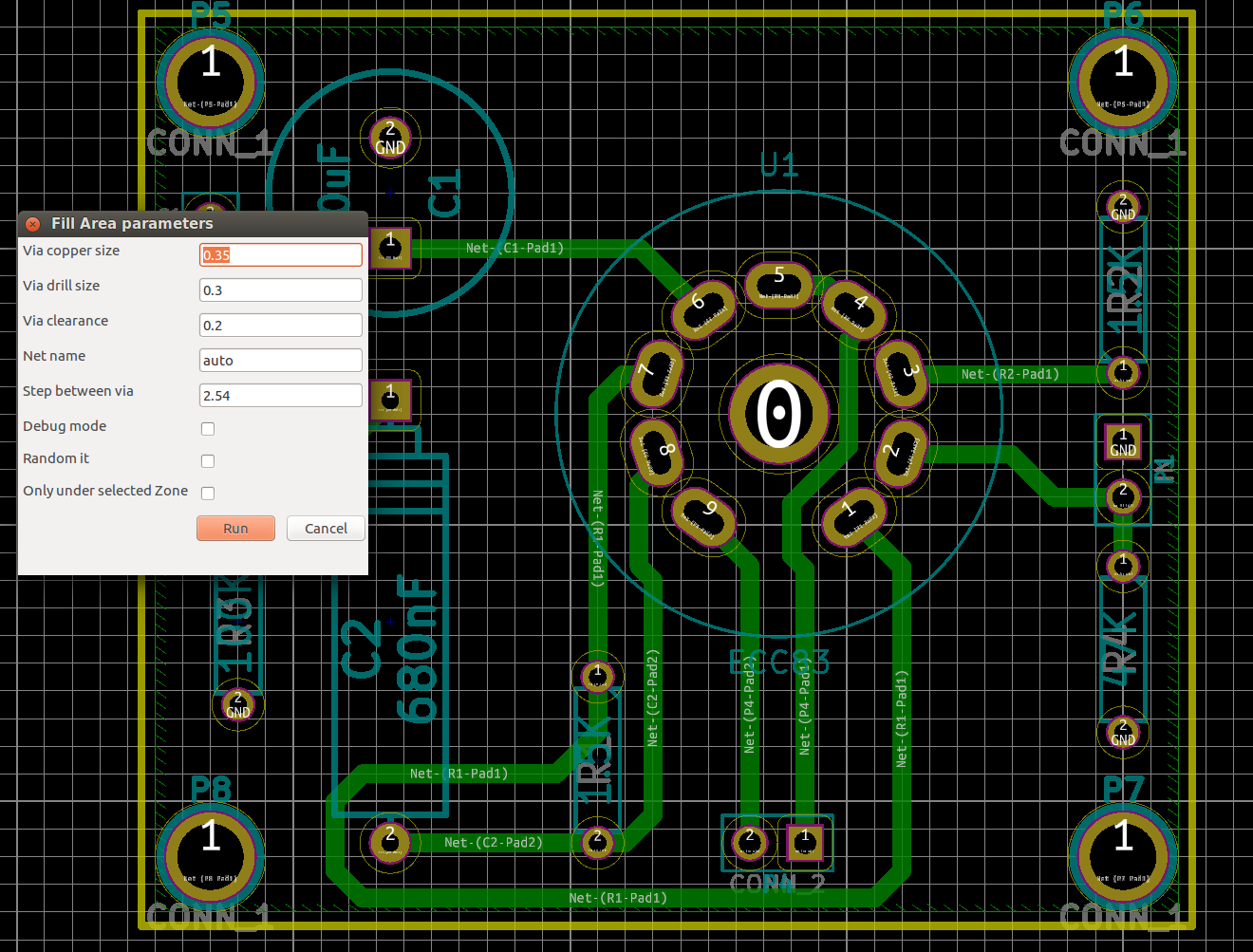

The interface

The "Net name" list contains only nets that have a zone; GND is listed first and preselected. The values entered in the dialog are remembered after clicking OK and offered again on the next run. They are stored in ViaStitching.json in the KiCad user settings directory (~/.config/kicad/10.0/ on Linux); delete this file to get the defaults back (via drill and clearance from the board design settings).

Options (1.3):

  • Vias are checked against the poured copper (not the zone outline) and the exact shapes of pads, tracks, vias, other zones and keepouts. "Refill zones" refills all zones before placing vias.
  • Pads of the target net only need to keep their thermal relief gap.
  • "Snap grid" (mm, 0 = off) puts every via on that grid, counted from the board Grid Origin.
  • "Via group": one group per net, per net and pattern, or a new group for every run.
  • "Mark skipped vias" draws a circle with a letter on User.Drawings where a via could not be placed: P pad, T track, Z other zone, K keepout, D copper drawing, F no poured copper, E board edge, R reference.
  • "Skip references" keeps vias out of visible footprint references.
  • "Only under selected Zone" warns when no zone of the net is selected.

Then the result should be:

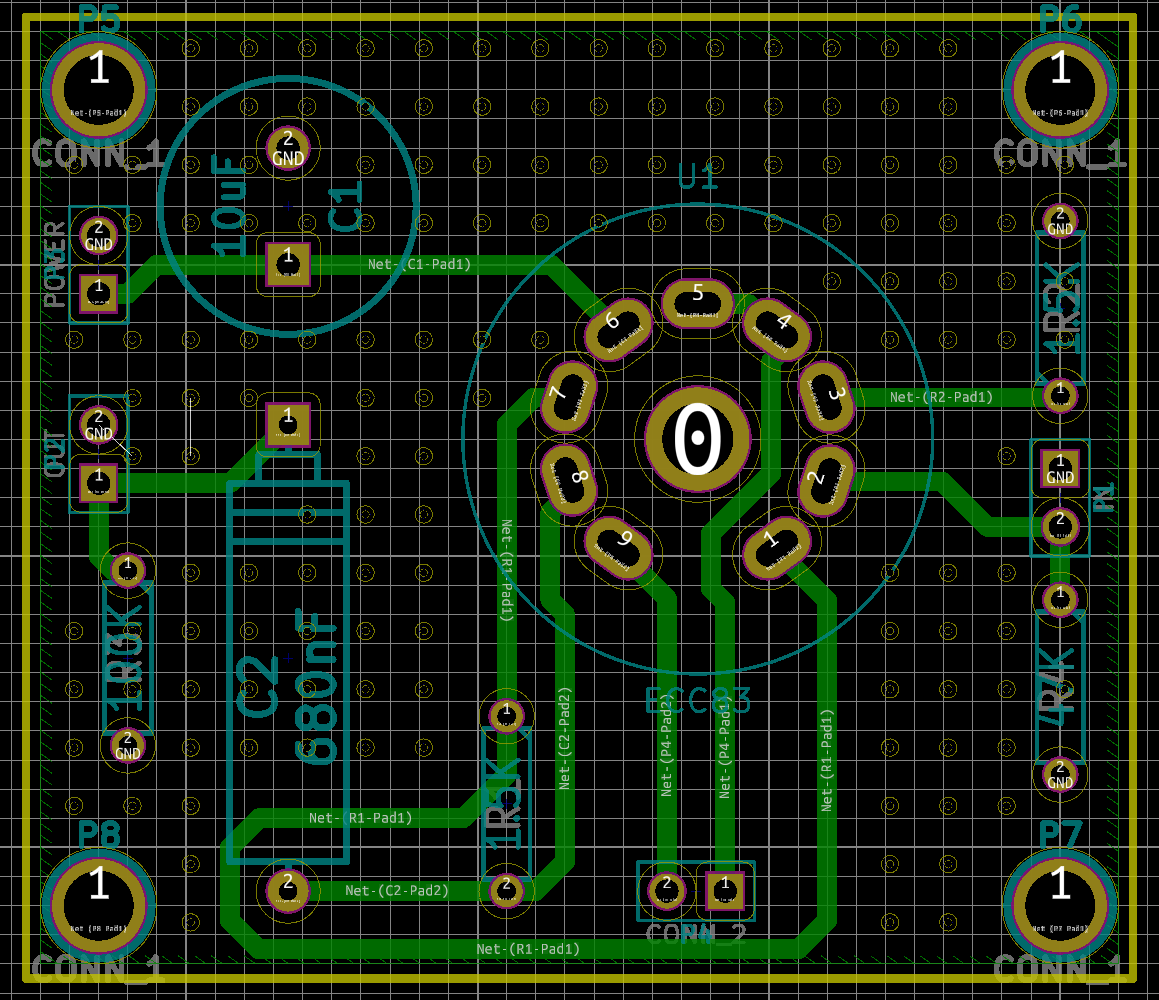

The result

CircularZone

A pure python script to create circular zone.

Select a component. This component will be used as center of the circular zone. If no component is selected, the origin (0,0) will be used as center.

After select "Create a circular zone" in the Tools menu, choose the radius and the type of zone (normal or keep out).

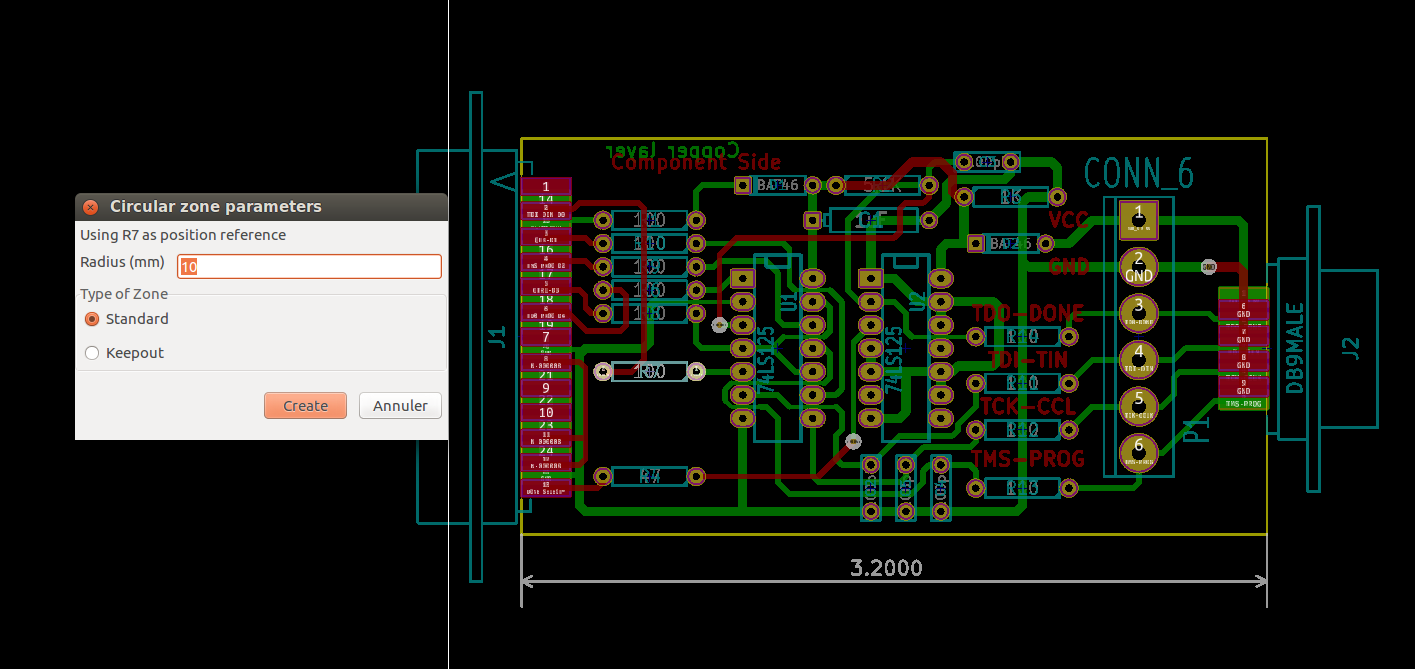

The interface

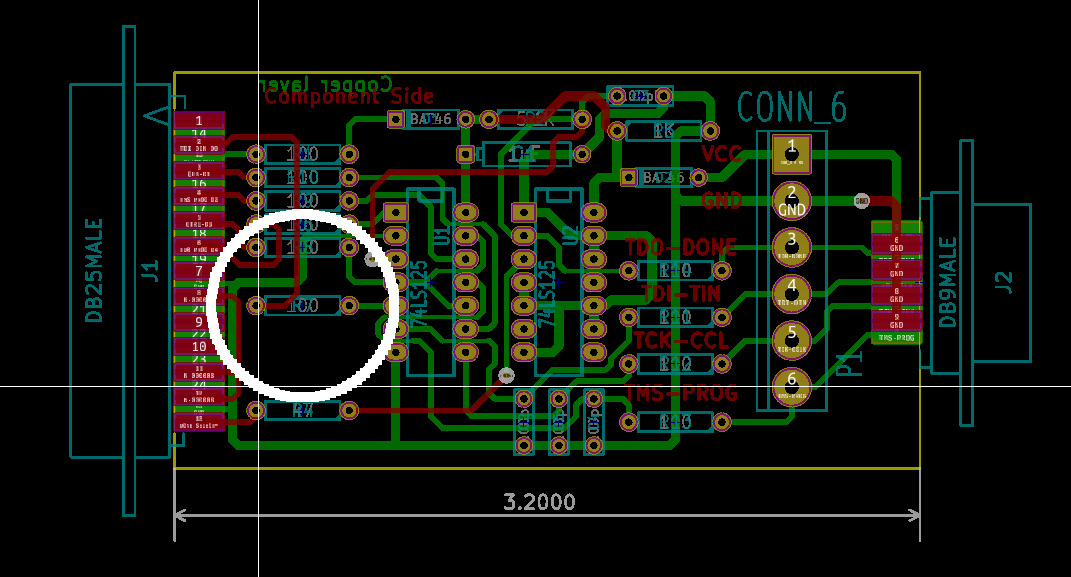

A circular zone will be created. Select it to change properties:

Select zone

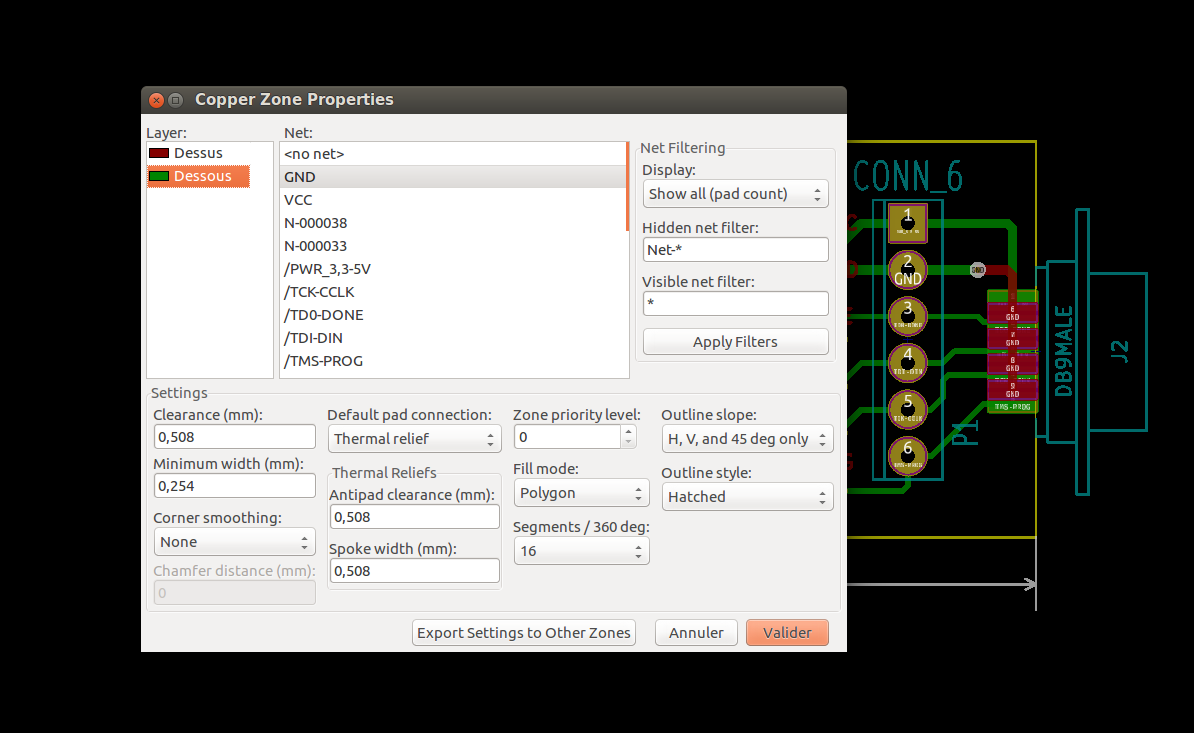

Open properties

Refill the area (B hotkey) then the circular zone is ready.

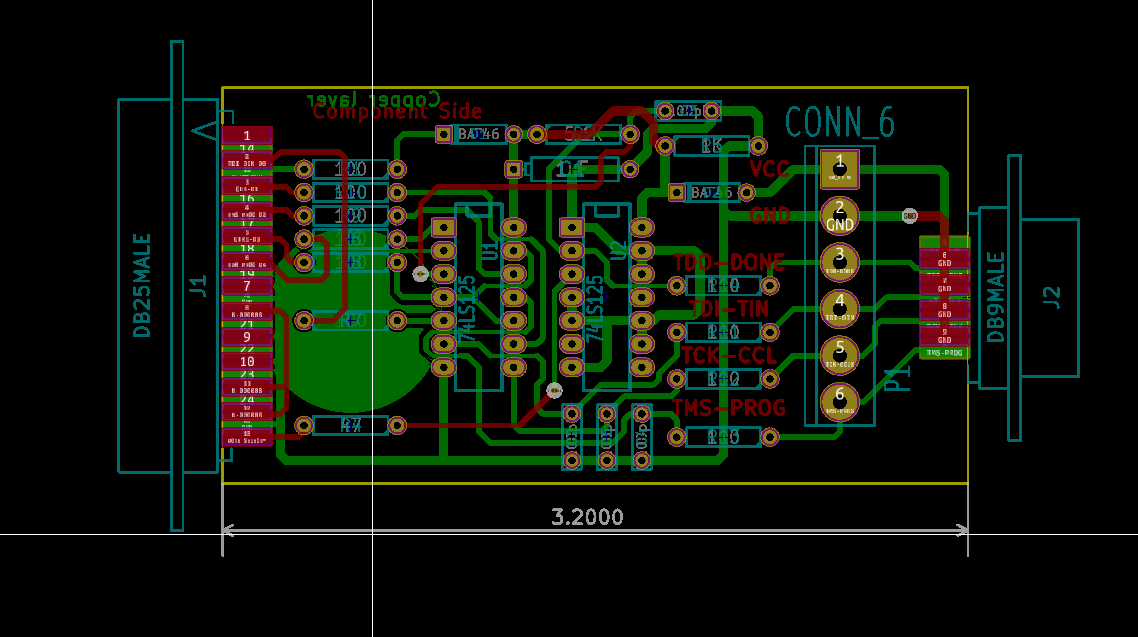

Final result
