action_menu_annular_check.py
A script to check for annular ring violations
for PTH, NPTH pads and vias
release "1.5.3"
'action_menu_annular_check.py' checking PCB for Annular Ring in PTH, NPTH and Vias
(SMD, Connector and NPTH are skipped)
default Annular Ring >= 0.15 both for TH Pads and Vias
to change values modify:
DRL_EXTRA = 0.100 #extra drill margin size for production

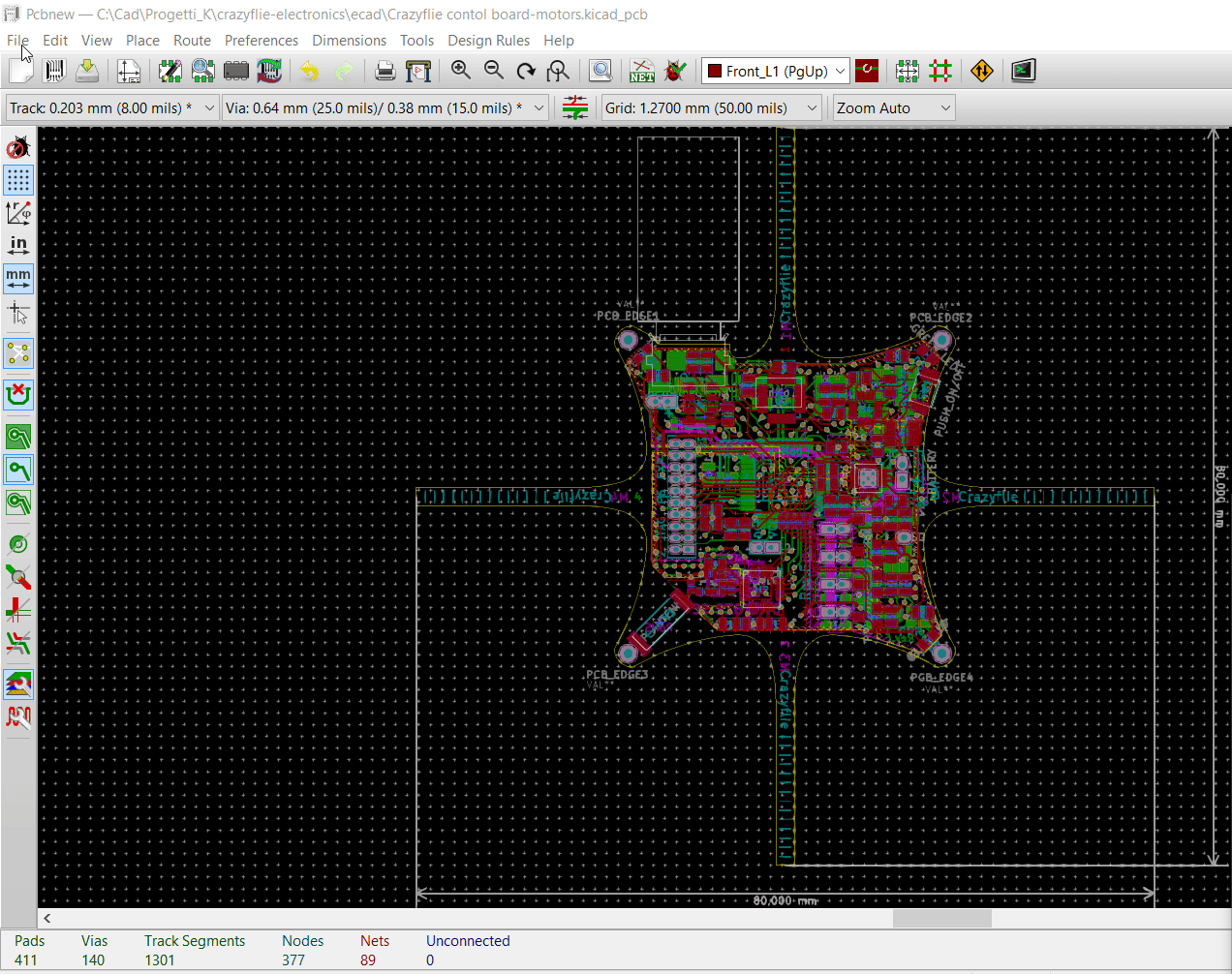

Launch the Annular Check script in pcbnew from Tools menu:
