kicad-action-plugins

kicad action plugin tools

action_menu_annular_check.py

A script to check for annular ring violations
for PTH, NPTH pads and vias

requirements: KiCAD pcbnew > 4.0 built with KICAD_SCRIPTING_ACTION_MENU option activated
release "1.5.3"

'action_menu_annular_check.py' checking PCB for Annular Ring in PTH, NPTH and Vias
(SMD, Connector and NPTH are skipped)
default Annular Ring >= 0.15 both for TH Pads and Vias
to change values modify:

AR_SET = 0.150   #minimum annular accepted for pads
AR_SET_V = 0.150  #minimum annular accepted for vias
DRL_EXTRA = 0.100 #extra drill margin size for production

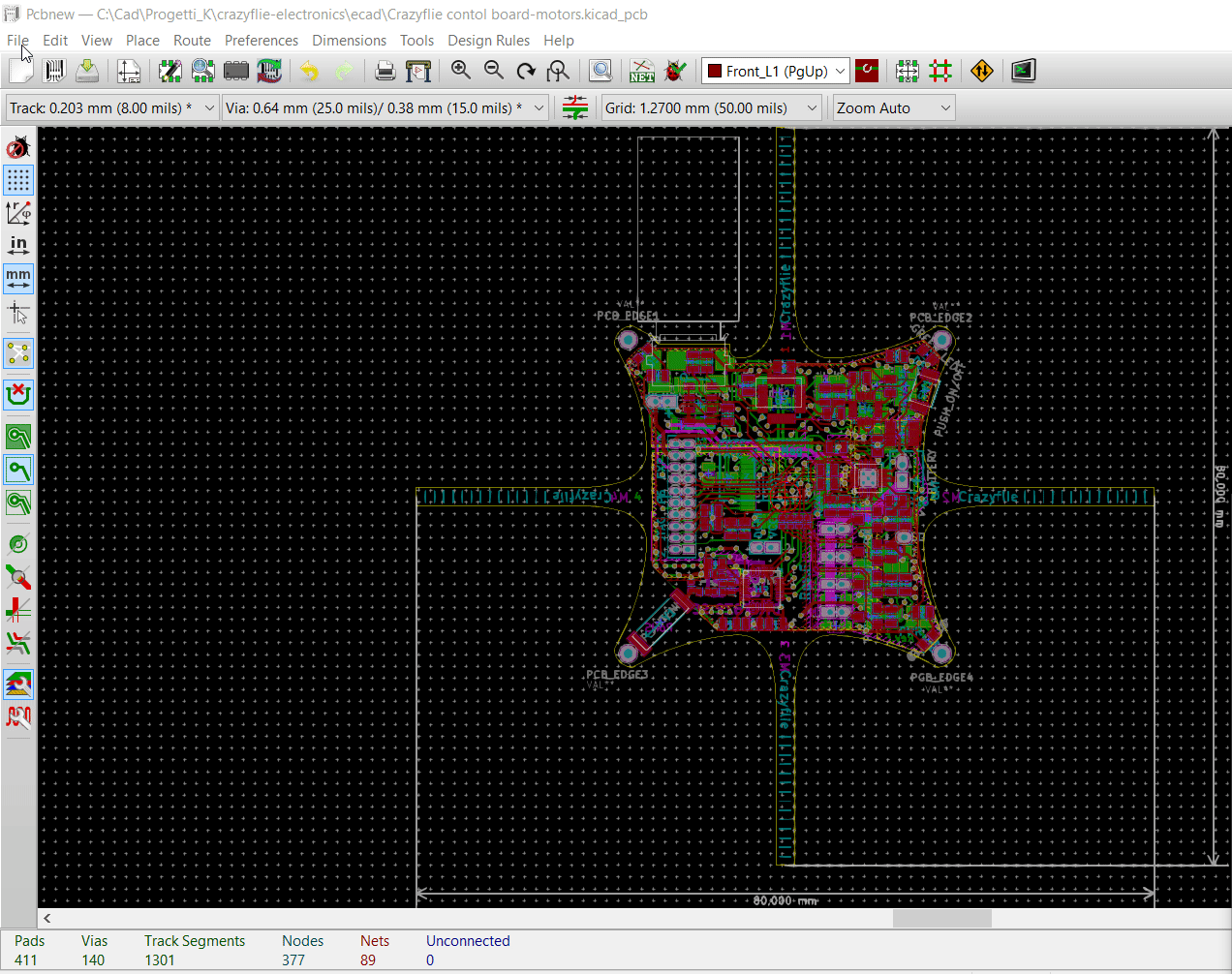

Launch the Annular Check script in pcbnew from Tools menu:

todo

• add colors to output
